$9,699.00

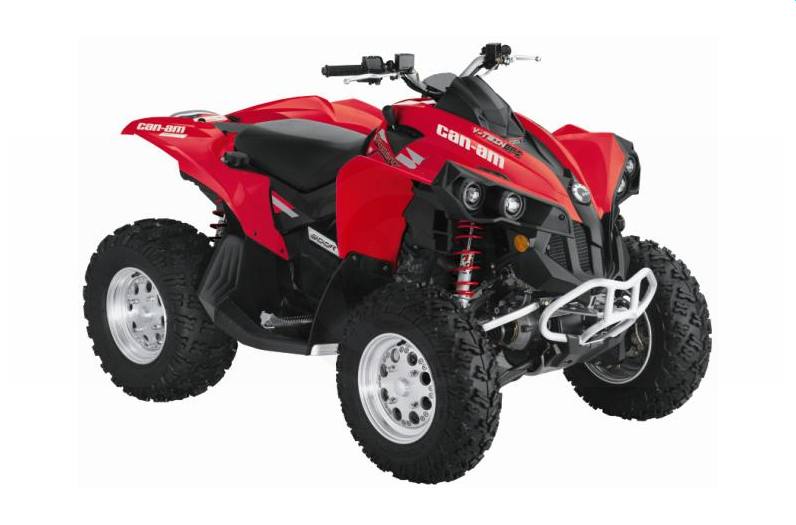

2010 Can-Am Renegade 800R EFI
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The Renegade™ 800R. Powered by the industry’s most powerful engine, the 71-hp Rotax® 800R, it's the right blend of sport performance and 4x4 terrain ability.


And for 2010 we’ve developed a new race-inspired cross-country package, the Renegade X xc. Complete with dual-mode Dynamic Power Steering (DPS™), quick-engaging Visco-Lok† QE, front sway bar and beadlock wheels that prevent the tire from popping off the rim. Sure, it all looks great in here. But it doesn't really matter until you ride it

  • Rotax 799.9 cc V-twin EFI engine with 71 hp
  • RS-type double A-arm front suspension with dive-control geometry and 8.5-inch (216 mm) travel
  • RS-type TTI rear suspension with 9-inch (229 mm) travel
  • Fade-resistant HPG shocks
  • Visco-Lok auto-locking differential
  • Lightweight center-cast-aluminum wheels with ITP Holeshot? ATR sport radial tires
  • Separate front and rear brake controls
  • Multi-purpose digital gauge
  • Four 60W projector beam lights
  • Full floorboards with kick-up aluminum pegs
Engine
  • Engine Type: 799.9 cc, V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
  • Bore & Stroke: 91 x 62 mm
  • EFI System / Carburetor: 46-mm Throttle Body, 2 Siemens VDO injectors
  • Starting System: Electric
  • Transmission: CVT, sub-transmission with high, low, park, neutral & reverse, standard engine braking
  • Drivetrain: Selectable 2w/4w shaft driven with Visco-lok† front differential
Chassis
  • Frame: SST
  • Front Suspension Type: RS-type double A-arm, forged aluminum upper arm/ HPG shocks
  • Front Travel: 8.5 in (216 mm)
  • Rear Suspension Type: RS-type TTI independent, HPG Shocks
  • Rear Travel: 9 in (229 mm)
  • Front Brake: 2 hydraulic discs
  • Rear Brake: 1 inboard hydraulic disc
  • Tires/Front: ITP‡ Holeshot‡ ATR - 25 x 8 x 12 in; ITP‡ Holeshot‡ ATR - 635 x 203 x 305 mm
  • Tires/Rear: ITP‡ Holeshot‡ ATR - 25 x 10 x 12 in; ITP‡ Holeshot‡ ATR - 635 x 254 x 305 mm
  • Wheels: Center cast-aluminum
Dimensions
  • L x W x H (in): 86 x 46 x 45 in
  • L x W x H (mm): 2,184 x 1,168 x 1,143 mm
  • Wheelbase: 51 in (1,295 mm)
  • Seat Height: 34.5 in (877 mm)
  • Ground Clearance: 11 in (279 mm)
  • Dry Weight: 614 lbs (279 kg)
  • Towing Capacity: 1,300 lbs (590 kg)
  • Rack Capacity: 35 lbs (16 kg)
  • Rear storage: 1 US gal (3.7 L)
  • Fuel Capacity: 4.3 US gal. (16.3 L)
Other Features
  • Instrumentation: Multi-function LCD gauge : speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, 4x4 indicator, diagnostics, auto shut off.
  • Anti-Theft: Digitally Encoded Security System (D.E.S.S.)
  • Electrical: Prewired for winch
  • Lighting: 4 fender mounted Projector Beam headlamps (60W) with tail light / brake light
  • DC Outlet: Lighter type in console, standard connector in the back (15A)
  • Color(s) available: Yellow, Viper Red

Specifications

Engine
Engine Type V-twin, SOHC, 8-valve (4-valve / cyl)
Displacement 799.9 cc
Bore x Stroke 91 x 62 mm
Engine Cooling Liquid cooled
Fuel System 46-mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Chassis
Front Suspension RS-type double A-arm, forged aluminum upper arm/ HPG shocks
Front Travel 8.5 in. (216 mm)
Front Brake Type 2 hydraulic discs
Front Tires ITP‡ Holeshot‡ ATR - 25 x 8 x 12 in. (635 x 203 x 305 mm)
Rear Suspension RS-type TTI independent, HPG Shocks
Rear Travel 9 in. (229 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires ITP‡ Holeshot‡ ATR - 25 x 10 x 12 in. (Holeshot‡ ATR - 635 x 254 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 614 lbs. (279 kg)
Front Rack Capacity 35 lbs (16 kg)
Towing Capacity 1,300 lbs. (590 kg)
Fuel Capacity 4.3 gal. (16.3 l)
Ground Clearance 11 in. (279 mm)
Machine Dimensions (LxWxH) 86 x 46 x 45 in. (2,184 x 1,168 x 1,143 mm)
Wheelbase 51 in. (1,295 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok† front differential
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, standard engine braking
General
Speedometer Digital LCD
Tachometer Digital LCD
Odometer Digital LCD
Lighting 4 fender mounted Projector Beam headlamps (60W) with tail light / brake light
Colors Yellow, Viper Red

Compare Models

 Print








Year 2010
Manufacturer Can-Am
Model Renegade 800R EFI
Style Sport
MSRP* $9,699.00
Chassis
Front Suspension RS-type double A-arm, forged aluminum upper arm/ HPG shocks
Front Travel 8.5 in. (216 mm)
Front Brake Type 2 hydraulic discs
Front Tires ITP‡ Holeshot‡ ATR - 25 x 8 x 12 in. (635 x 203 x 305 mm)
Rear Suspension RS-type TTI independent, HPG Shocks
Rear Travel 9 in. (229 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires ITP‡ Holeshot‡ ATR - 25 x 10 x 12 in. (Holeshot‡ ATR - 635 x 254 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 614 lbs. (279 kg)
Front Rack Capacity 35 lbs (16 kg)
Rear Rack Capacity
Towing Capacity 1,300 lbs. (590 kg)
Fuel Capacity 4.3 gal. (16.3 l)
Ground Clearance 11 in. (279 mm)
Machine Dimensions (LxWxH) 86 x 46 x 45 in. (2,184 x 1,168 x 1,143 mm)
Wheelbase 51 in. (1,295 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok† front differential
Final Drive
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, standard engine braking
Engine
Engine Type V-twin, SOHC, 8-valve (4-valve / cyl)
Displacement 799.9 cc
Bore x Stroke 91 x 62 mm
Cylinders
Engine Cooling Liquid cooled
Fuel System 46-mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Alternator
General
Speedometer Digital LCD
Tachometer Digital LCD
Odometer Digital LCD
Lighting 4 fender mounted Projector Beam headlamps (60W) with tail light / brake light
Colors Yellow, Viper Red
